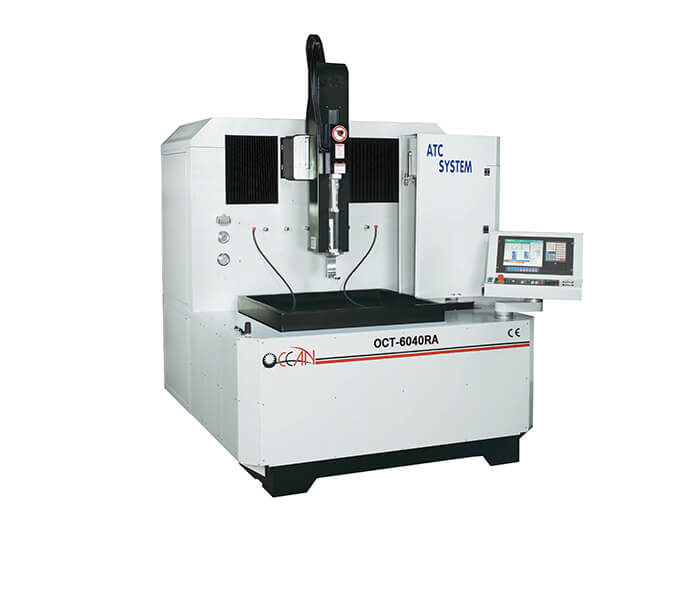

RAM Type CNC OCT-6040RA
- All axes use linear ways. dot Available to equip with 5th or 6th axis machining irregular-shape workpiece.
- Employs industrial grade P.C. with DOS or windows(opt.) operation system for powerful control functions and ease operation.
- Make the machine ideal for deep hole machining. Also, ideal for machining higher workpiece.
- Elevating working fluid tank greatly increases convenience for workpiece loading and unloading.
- 5.6 axes machining are available.
- Choice of working fluid: oil or water liquid.
| Item / Model | OCT-6040RA (RAM TYPE) |
|---|---|
| Table travel (X,Y axes) | 600 x 400 mm |
| Working table size | 850 x 650 mm |
| W axis travel | 700 mm |
| Z axis travel | 500 mm |
| maximum height of workpiece | 650 mm |
| Max. workpiece weight | 1200 kgs |
| Power input | According to local voltage |
| Maximum average current | 32 Amps |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.1~3.0 mm |
| Machine net weight | 5000 kgs |
| Depth / Width / Height | 2180 x 1980 x 2500 mm |
| * All specification are subject to change without prior notice. *All the specifications are subject to change without prior notice. |
|
