Features
What makes OCEAN TECHNOLOGIES' Small Hole EDM Drilling Machine stand out from the rest?
- The sparking drilling is use of digital control mechanism, which can effectively enhance the small size drilling and speed by stability.
- EDM Hole Drilling uses an energized rotating tube electrode With HP1+(plus) high-speed circuit to enhance drilling speed. Help you level of accuracy, reliability and productivity.
- Small hole electrical discharge machining (EDM) drilling is employed to create openings in turbine blades, fuel injectors, coolant holes for cutting tools, hardened punch ejector holes, vent holes in plastic molds, starter holes for wire EDM, and various other applications.
Please get in touch with OCEAN TECHNOLOGIES promptly to acquire tailor-made solutions.
Specifications

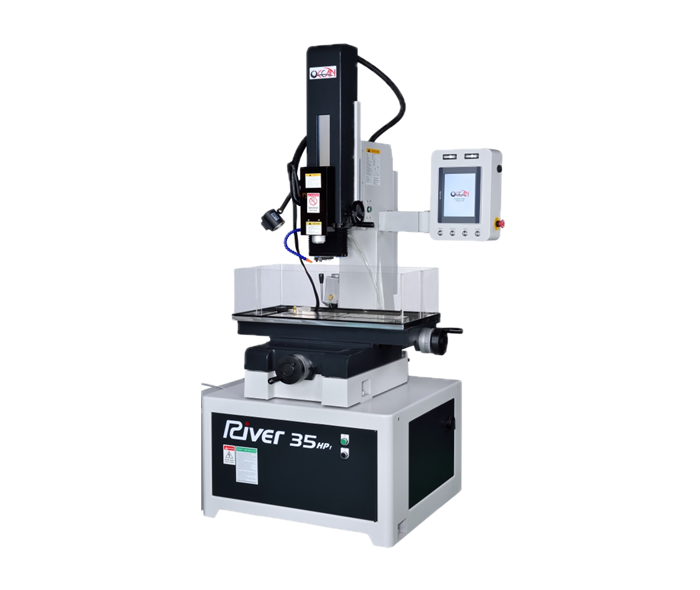

| Model no | River 35 |
| Table travel (X,Y axes) |
350 x 250 mm |
| Work table size | 600 x 300 mm |
| Z axis travel | 350 mm |
| W axis travel | 200 mm |
| Max. workpiece height | 330 mm |
| Max. workpiece weight | 250 kgs |
| Power input | According to local voltage |
| Max. average current | 32 Amps (64A optional) |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.) |
| Machine net weight | 1000 kgs |
| Depth / Width / Height | 1200 x 1550 x 2230 mm |
