Features
- The sparking drilling is use of digital control mechanism, which can effectively enhance the small size drilling and speed by stability.
- With HP1+(plus) high-speed circuit to enhance drilling speed.
Specifications

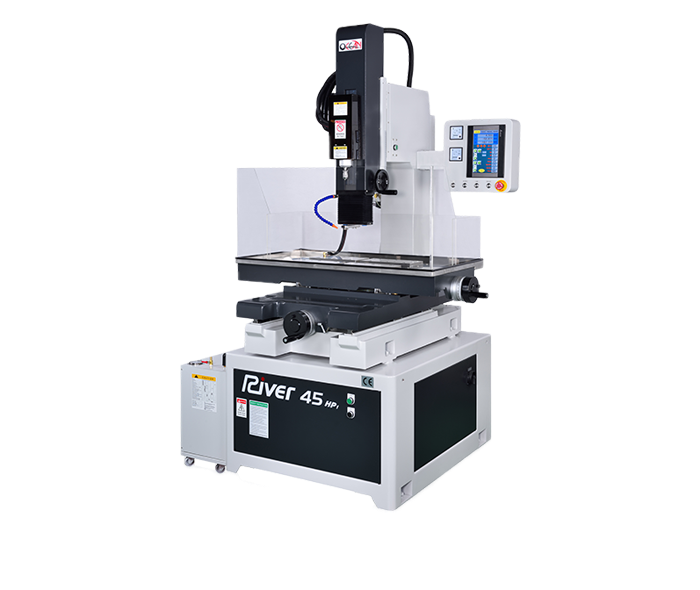

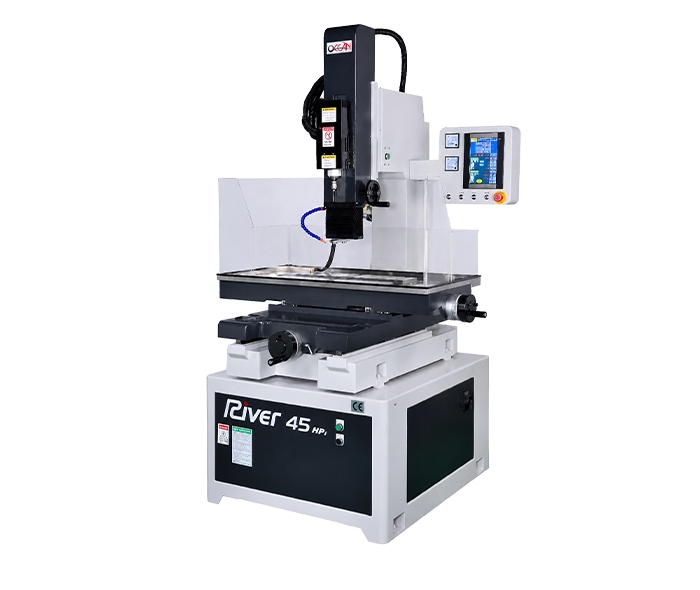

| Model no | River 45 |
| Table travel (X,Y axes) |
450 x 350 mm |
| Work table size | 600 x 376 mm |
| Z axis travel | 350 mm |
| W axis travel | 200 mm |
| Max. workpiece height | 360 mm |
| Max. workpiece weight | 600 kgs |
| Power input | According to local voltage |
| Max. average current | 32 Amps (64A optional) |
| Power capacity | 3.8 KVA |
| Electrode diameter | 0.1 ~ 3.0mm (3.0 ~ 6.3mm Opt.) |
| Machine net weight | 1300 kgs |
| Depth / Width / Height | 1520 x 1620 x 2230 mm |
* Due to continuous research and development, all specifications and design characteristics are subject to change without prior notice.
