Features
SUBMERGE ROTARY TABLE
- 100% Ocean Technologies Product, Turn & Burn Technologies.

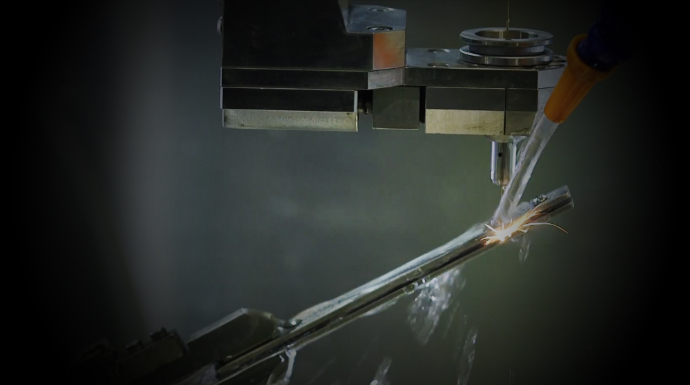

The state-of the art in house produced ocean Technologies Rotary Table can fully submerged in water. The isolation grade of IP68 Rotary Table employs motorized spindle that features outstanding accuracy performance. - The RT-115B & RT-115AB are also applicable with Wire Cut EDM.

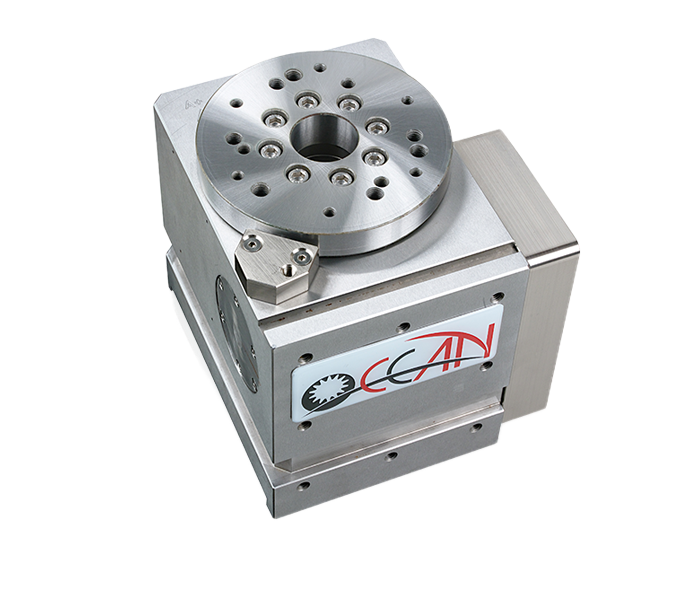

- RT -115 B Single Axis Rotary table.
Specifications
| Item / Model | RT-115B Rotary Table |
| Protection Class |
IP68 |
| Rotary Table | φ115 mm |
| Min. Indexing Step | 0.001° |
| Table Rotating Accuracy | 10u |
| Indexing Accuracy | 40 – 60 sec. |
| Precision of Encoder System | ± 10 sec. |
| Max. Speed | 10 r.p.m. |
| Speed Reduction Ratio | 144:1 |
| Swiveling Range | B axis : 0 - 360° |
| Max. Radial Load | 15 kgs |
| Total Weight | 12 kgs |
Suitable environment temperature : 25°C ± 10%
